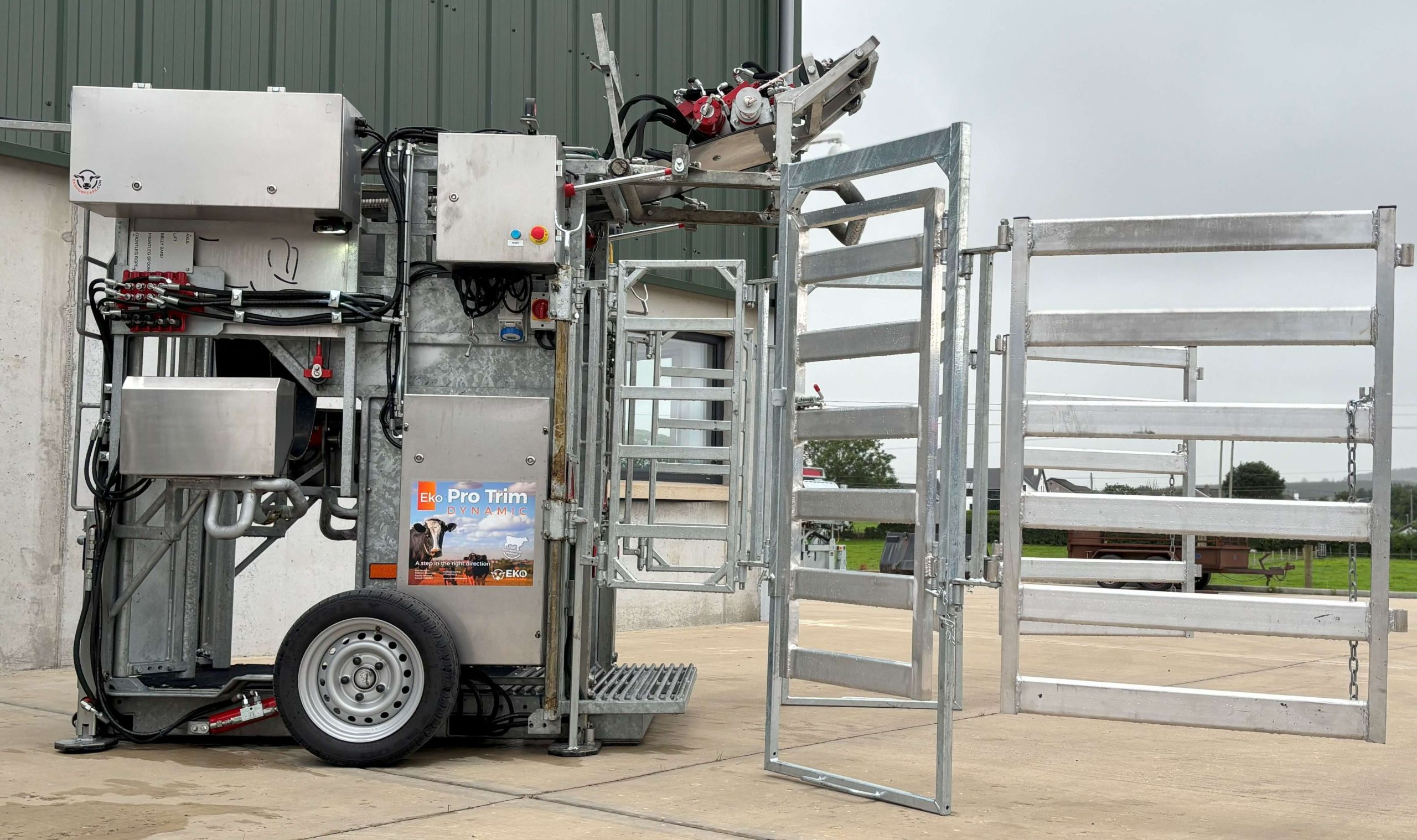

Ten Napel Pro Trim Dynamic
Our hoof trimming crushes are tailor-made according to your wishes and requests.
The Pro Trim Contractor Unit boasts all the features of the Pro Trim Standard, but with a much larger hydraulic system, to cater for more extras, more power, speed and comfort for the user.
Ergonomic hoof trimming crush for professionals.
There are also over 30 optional extras available for the Pro Trim Contractor crush. Speak to our sales team today for more information.
Features and Specifications
Frame made of high quality steel (1.0038 / S235JR) fully welded, completely galvanized and all corners are reinforced. Aluminum plate floor with rubber Dunlopmat. Standard extra wide rebar floor rating on aft side of the frame.
Suitable for all cattle, cows and bulls. The animal can move through the crush without any obstacles guaranteed.
Inside dimensions:
- Length: 180 cm
- Width: 74 cm
- Height: 170 cm
- Weight: depending on options.
Completely flat floor as wheel axle is fully integrated under the floor.
- Heavy WAP axle, 1500 kg load capacity (1800kg, heavy duty optional).
- Tyres 195/50R13
- Simple connection of towbar by means of Ten_Napel_Quickmount© system
- Optional heavy WAP disc braked axle
Equipped with adjustable, solid “Texas” doors, mounted on heavy duty hinges. Operated hydraulically. The cow will automatically lock her head whilst entering the crush.
Hydraulically operated “Solid Backbar”.
Two hydraulic cylinders are used to operate. Lower part is spring loaded for optimal guiding of back leg. All axles mounted in bearings with easy access grease points.
